Scarborough Central Tramway

One of Scarborough’s historic Cliff railways. Built in 1881 The Central Tramway retains the original Victorian Character.  The Tramway was constructed by George Wood of Hull. The designer was Charles Augustus Bury.


Region:
North Yorkshire
Red Wheel Site:
Yes
Transport Mode(s):
Rail
Address:

Upper Station,

Marine Parade

Scarborough

Yorkshire

Postcode:
YO11 2ER
Visitor Centre:
No
Website:

About Scarborough Central Tramway

Scarborough is the home of Britain's first cliff railway, which is still going strong today. The town's location well above the sea makes it ideal for funicular railways that can transport people to and from the shore. There were once five of them in Scarborough, though only three remain, one non-operational; the North Cliff Lift and the Queen's Parade Cliff Lift have closed.

Scarborough was a famous spa town from the 17th century onwards. It later became popular for sea bathing and is still a popular holiday destination. When the Grand Hotel was completed in 1867 it was one of the largest hotels in the world and one of the first giant purpose-built hotels in Europe. Four towers represent the seasons, 12 floors represent the months, 52 chimneys represent the weeks and the original 365 bedrooms represented the days of the year. Its two main bays are divided by a promontory, which is the site of Scarborough Castle. Both bays have had cliff railways but the surviving ones are all in South Bay.

The first cliff railway (South Cliff Lift) was built to connect the spa on South Sands with South Cliff Esplanade. It was designed by William Lucas and opened on 6th July 1875, with twin standard gauge (1.435m wide) tracks 86.6m long set at a 1 in 1.75 gradient. Originally there was a single steel rope between the two cars, with an automatic brake that operated if the rope went slack. The funicular was powered hydraulically by seawater. Water was fed into tanks beneath the upper car, which would then descend, causing the linked lower car to rise. At the bottom, the tanks emptied and the water was pumped through a pipe between the tracks up to the top to be reused. Initially, the water was moved by gas engines, and from 1879 by steam pumps. Between 1935 and 1947, South Cliff Lift was converted to electric-powered winding and in 1997 it was refurbished to operate automatically. It is now owned by Scarborough Borough Council.

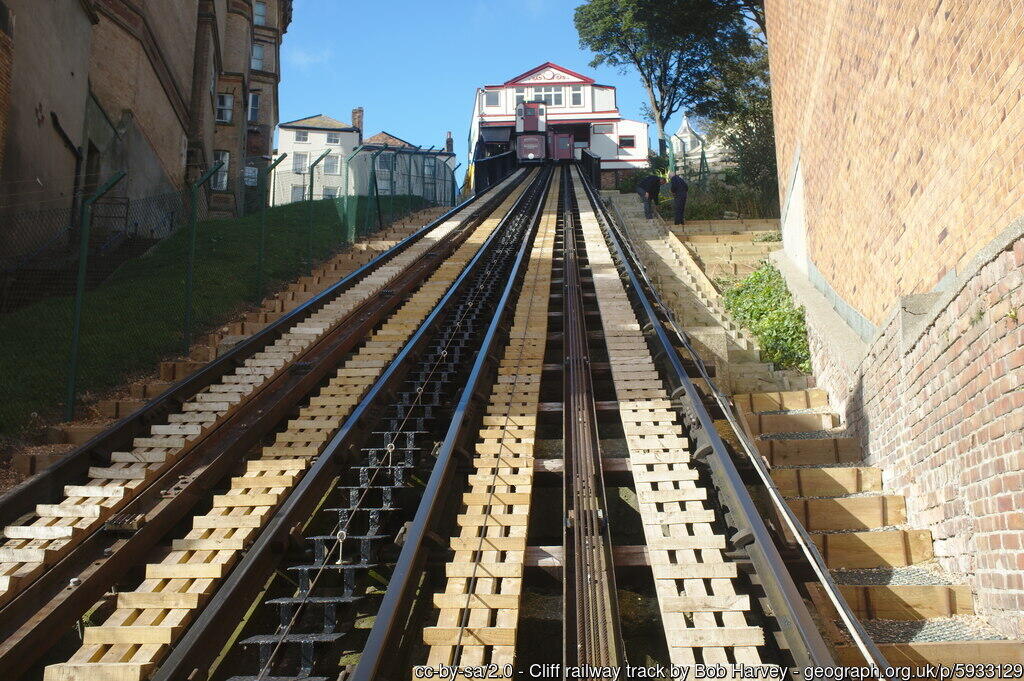

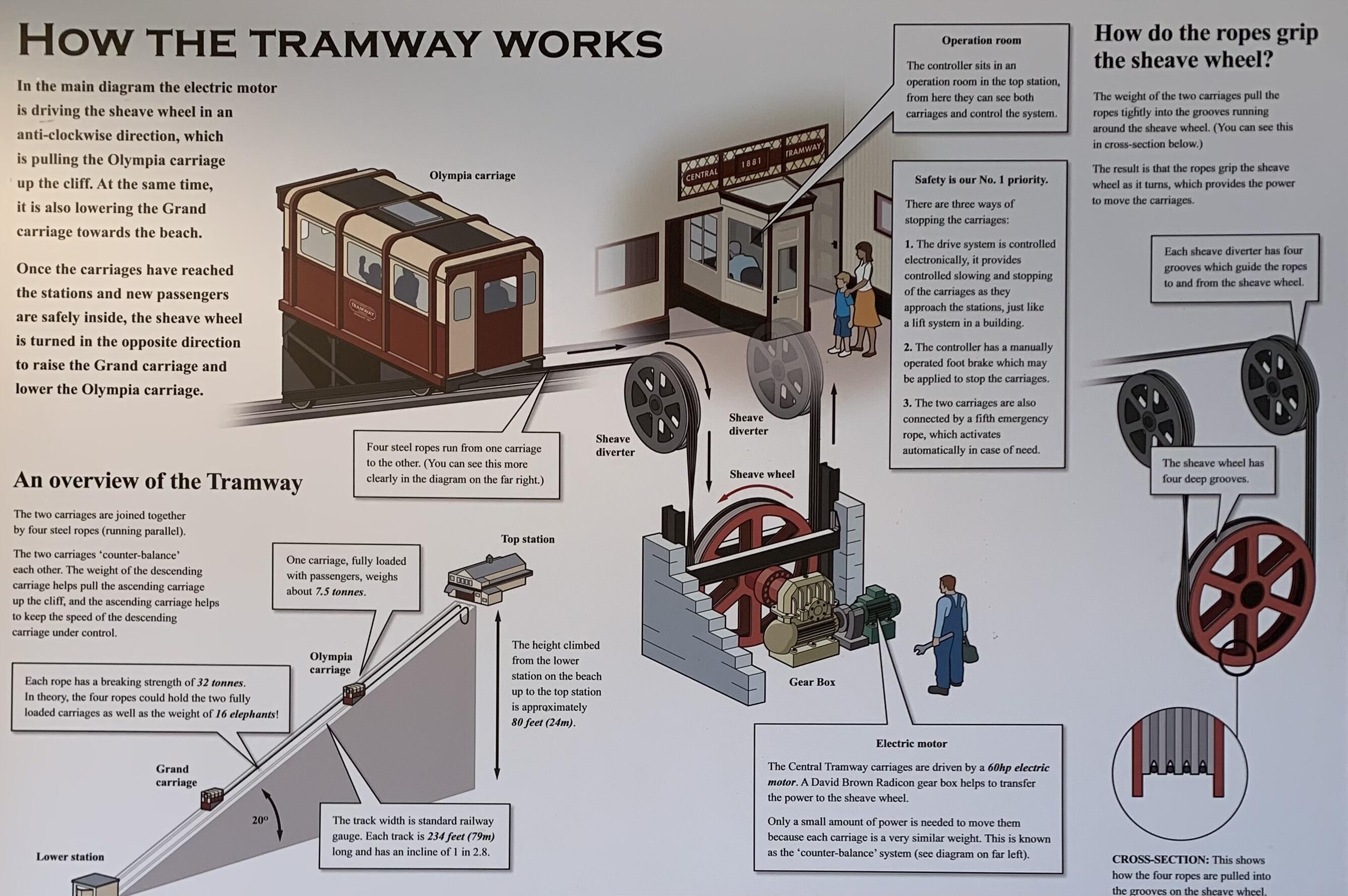

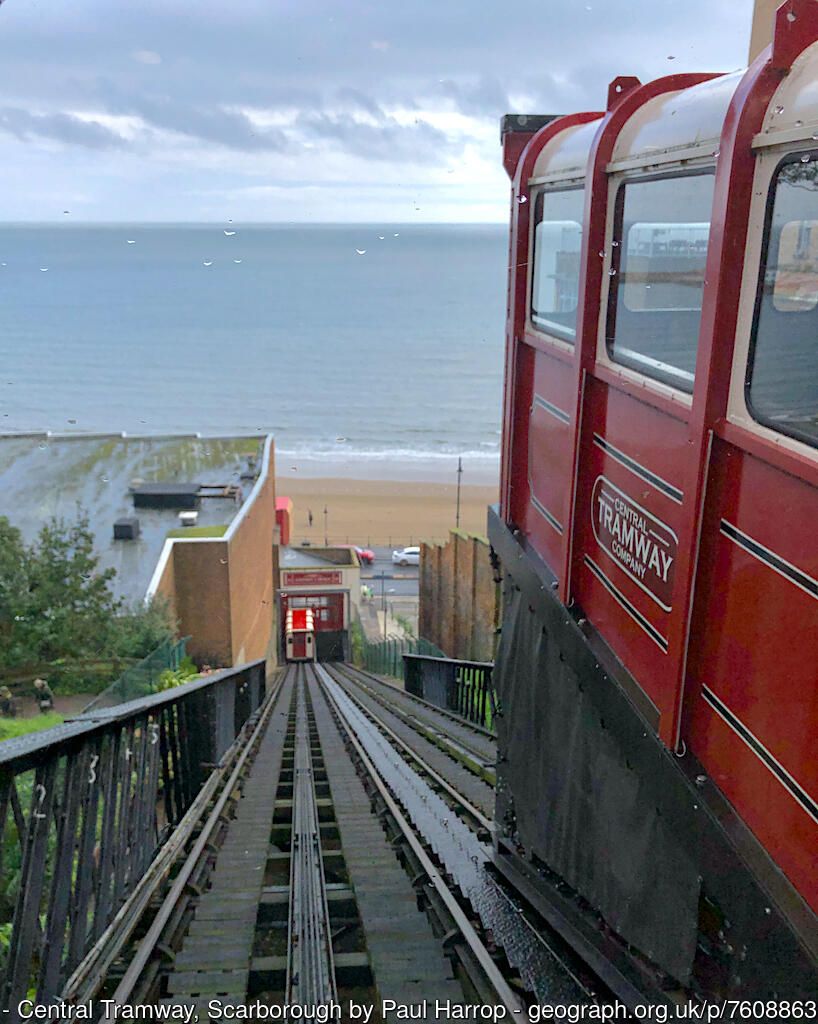

Another cliff railway (Central Tramway) was built between Foreshore Road and St Nicholas Gardens by the Central Tramway Company Scarborough Ltd, who still owns it. This one opened on 1st August 1881. Its winding gear was powered by steam and the driver had no direct view of the cars as the equipment was sited some 18m below the top station, presumably for safety. The parallel standard gauge railway tracks are 77.7m long over a slope of 1 in 2. The steam-powered funicular was converted to electric drive between 1910 and 1920, drawing direct current from the town's tramway system. It used alternating current after 1931, when trams were abandoned. The motor was relocated under the top station and the driver has full view of the cars, which were replaced in 1932. Safety brakes are located on a rail in the centre of each track.

The Central Tramway was so popular, especially with guests at Scarborough's Grand Hotel, that an extra funicular (St Nicholas Cliff Lift) was built nearby, opening on 5th August 1929 and costing £6,000. All the control equipment and ticket office were located at the top of the slope - there was no lower station and passengers stepped from the carriage onto the pavement. This cliff railway's twin tracks are 31m long and 2.286m wide set on a steep gradient of 1 in 1.333. Its two cars were driven by electricity. It was sold to Scarborough Corporation in 1945. Scarborough Borough Council closed St Nicholas Lift in 2006 as it was operating at a loss. It is expected to be demolished.

(See also entries forScarborough South Spa Cliff Railway and Scarborough St Nicholas Cliff Lift)

By road: Off A64

By rail: Scarborough Station is approx 1 km away



Direct navigation links:

Enter your starting address:



what3words address: ///froth.wiring.gears

Body, Geoffrey, Cliff Railways of the British Isles, David & Charles, ASIN: B0000CMBSI, (1964)

Books Llc, Funicular Railways of the United Kingdom, ISBN- 10: 1155703189 (2010)

Schneigert, Z., Aerial Ropeways and Funicular Railways, Elsevier, ISBN-10: 0080116817 (1966)

Turner, Keith, Cliff Railways of the British Isles, Oakwood, ISBN-10: 0853615942 (2002)

Woodhams, John, Funicular Railways, Shire, ISBN-10: 0747800405 (1989)

Bartle, Amy, An Illustrated Guide to the Funicular Railways of Great Britain’ ISBN 978-0-9956983-2-1‘

Souvenir History and Miscellany of The Central Tramway Company Scarborough. ISBN 978-0-9956983-1-4

‘A 1975 centenary: The Scarborough Cliff Lifts’ HV Jinks & JH Price
